POU Laboratory Systems

Hydro’s brand of laboratory polishers called Picosystems® have endured time. With nine point-of-use (POU) polishers for varying applications, all Picosystems® are industry leaders in quality comparisons to other laboratory systems. Purity begins with quality materials such as activated carbon and premium DI resins regenerated under proprietary protocols with complete QC/QA. These resins deliver higher purity water more consistently and are a green product since they are recovered, regenerated and reused. The chassis for all systems delivers ASTM/CAP Type I water using pre-filtration, carbon adsorption, and mixed-bed deionization. The Plus and UV Plus Systems provide constant recirculation and TOC reduction, respectively. For applications requiring sterile water, the Picotech® with UV is recommended. The Picopure® and Picomax® deliver sterile, pyrogen-free and RNase-free water and all systems are modular so that upgrading from the Picosystem® to the Picotech®, Picopure® or Picomax® can occur with ease. These systems are Hydro OEM products made in the USA

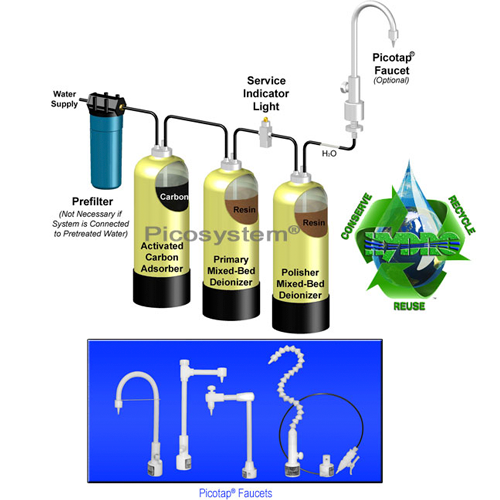

PICOSYSTEM®​

The Picosystem® is Hydro’s basic point-of-use (POU) water purification system that produces ASTM and CAP Type 1 Reagent Grade Water for basic analytical laboratory applications. The Picosystem® is also the chassis for eight additional POU systems that produce varying higher qualities for more critical applications. The system components include one organic adsorber containing highly activated carbon media for chlorine/chloramine removal and TOC reduction, one primary and one polishing mixed-bed deionizer containing pharma-grade cation/anion resins, a service indicator light and polyethylene interconnecting tubing. Hydro manufactures a selection of Picotap® faucets made of UHMW virgin polypropylene and polyethylene to complement the Picosystem’s® quality.

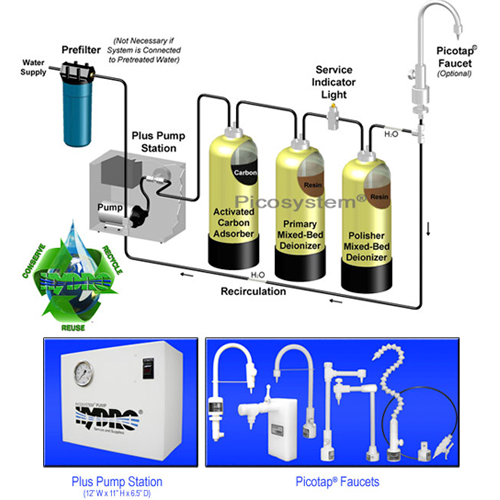

PICOSYSTEM®​ PLUS

The Picosystem® Plus combines the Plus Pump Station for recirculation with Hydro’s basic point-of-use (POU) water purification system to produce low TOC, ASTM and CAP Type 1 Reagent Grade Water for analytical laboratory applications. The Picosystem® components include one organic adsorber containing highly activated carbon media for chlorine/chloramine removal and TOC reduction, one primary and one polishing mixed-bed deionizer containing pharma-grade cation/anion resins, a service indicator light and polyethylene interconnecting tubing. Recirculation lowers TOC to <20 ppb and allows for the addition of a resistivity monitor if desired. Hydro manufactures a selection of Picotap® faucets made of UHMW virgin polypropylene and polyethylene to complement the Picosystem’s® quality.

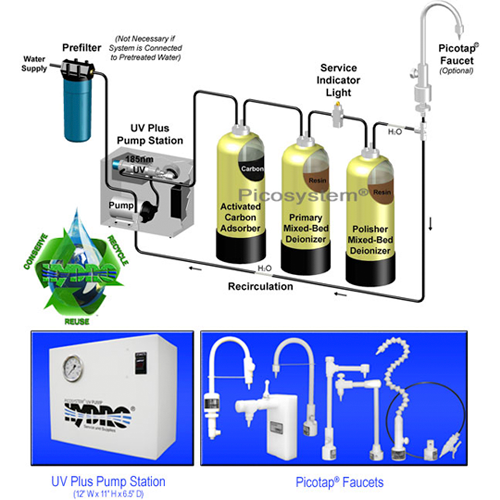

PICOSYSTEM®​ UV PLUS

The Picosystem® UV Plus combines 185 nm UV (ultraviolet) technology in the UV Plus Pump Station with the quality performance of Hydro’s basic point-of-use (POU) water purification system to produce low TOC, ASTM and CAP Type 1 Reagent Grade Water for analytical laboratory applications requiring <5 ppb TOC. The Picosystem® components include one organic adsorber containing highly activated carbon media for chlorine/chloramine removal and TOC reduction, one primary and one polishing mixed-bed deionizer containing pharma-grade cation/anion resins, a service indicator light and polyethylene interconnecting tubing. Recirculation allows for the addition of a resistivity monitor if desired. Hydro manufactures a selection of Picotap® faucets made of UHMW virgin polypropylene and polyethylene to complement the Picosystem’s® quality.

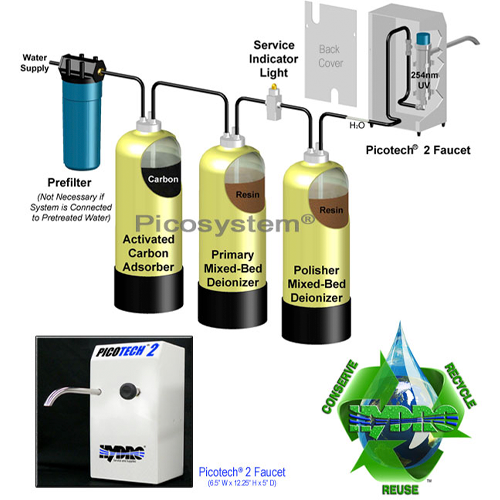

Picotech® 2

The Picotech® 2 combines 254 nm UV (ultraviolet) technology with the quality performance of the Picosystem® to produce sterile ASTM and CAP Type I Reagent Grade Water for critical laboratory applications. Bacteria-free water is dispensed from the electropolished stainless steel spout connected directly to the UV chamber. The chassis for all Hydro point-of-use (POU) systems is the Picosystem®, which contains a highly activated carbon media for chlorine/chloramine removal and TOC reduction, and quality pharma-grade mixed-bed resins for deionization. Component synergy in every Hydro system guarantees quality, consistency and purity each time water is dispensed.

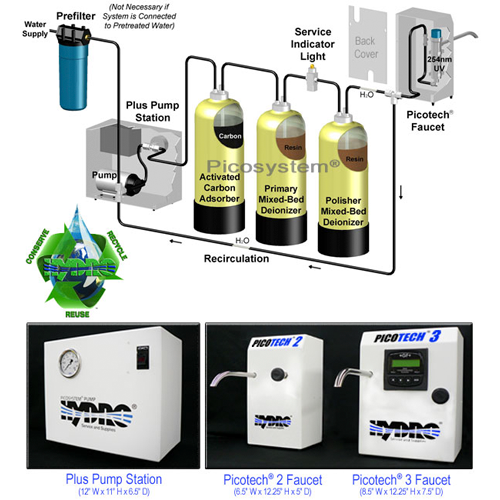

Picotech® Plus

The Picotech® Plus combines 254 nm UV (ultraviolet) technology in the faucet and the quality performance of the Picosystem® to produce sterile, low TOC, ASTM and CAP Type I Reagent Grade Water for critical laboratory applications. Bacteria-free water is dispensed from the electropolished stainless steel spout connected directly to the UV chamber. The chassis for all Hydro point-of-use (POU) systems is the Picosystem®, which contains a highly activated carbon media for chlorine/chloramine removal and TOC reduction, and quality pharma-grade mixed-bed resins for deionization. “Plus” means the system is recirculated. Recirculation lowers TOC’s to <20 ppb and allows a choice between the Picotech® 2 faucet or the optional Picotech® 3 faucet with resistivity monitor.

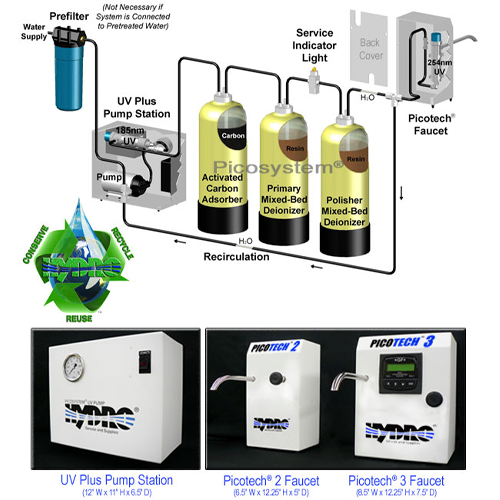

Picotech® UV Plus

The Picotech® UV Plus combines 254 nm UV (ultraviolet) technology in the faucet, 185 nm UV in the system recirculation and the quality performance of the Picosystem® to produce sterile, low TOC, ASTM and CAP Type I Reagent Grade Water for critical laboratory applications. Bacteria-free water is dispensed from the electropolished stainless steel spout connected directly to the UV chamber. The chassis for all Hydro point-of-use (POU) systems is the Picosystem®, which contains a highly activated carbon media for chlorine/chloramine removal and TOC reduction, and quality pharma-grade mixed-bed resins for deionization. “Plus” means the system is recirculated and the 185 nm UV reduces TOC’s to <5 ppb through the photo-oxidation process.

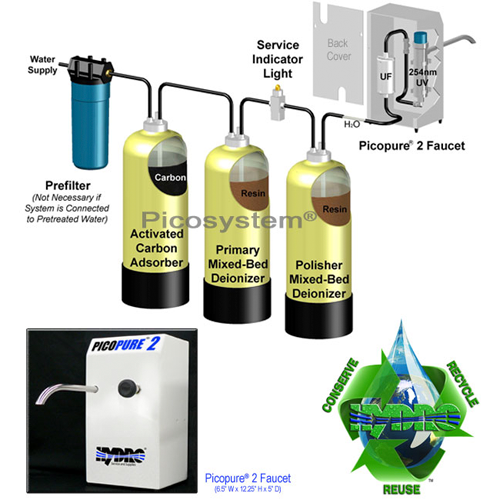

Picopure® 2

The Picopure® 2 combines 254 nm UV (ultraviolet) technology and ultrafiltration with the quality performance of the Picosystem® to produce sterile, depyrogenated ASTM and CAP Type I Reagent Grade Water for critical laboratory applications. Ultrapure water is dispensed from the electropolished stainless steel spout connected directly to the UV chamber. The chassis for all Hydro point-of-use (POU) systems is the Picosystem®, which contains a highly activated carbon media for chlorine/chloramine removal and TOC reduction, and quality pharma-grade mixed-bed resins for deionization. Component synergy in every Hydro system guarantees quality, consistency and purity each time water is dispensed.

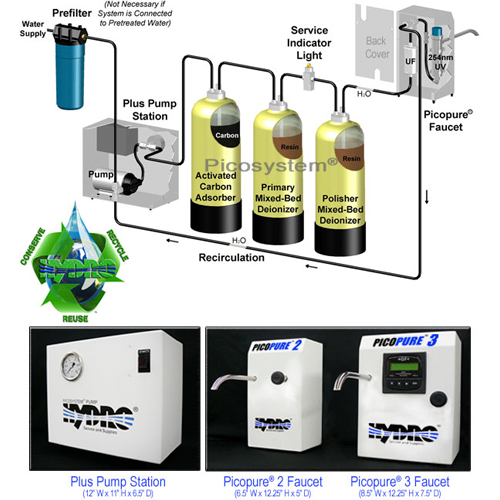

Picopure® PLUS

The Picopure® Plus combines 254 nm UV (ultraviolet) technology and ultrafiltration in the faucet and the quality performance of the Picosystem® to produce sterile, depyrogenated, low TOC, ASTM and CAP Type I Reagent Grade Water for critical laboratory applications. Ultrapure water is dispensed from the electropolished stainless steel spout connected directly to the UV chamber. The chassis for all Hydro point-of-use (POU) systems is the Picosystem®, which contains a highly activated carbon media for chlorine/chloramine removal and TOC reduction, and quality pharma-grade mixed-bed resins for deionization. “Plus” means the system is recirculated. Recirculation lowers TOC’s to <20 ppb and allows a choice between the Picopure® 2 faucet or the optional Picopure® 3 faucet with resistivity monitor.

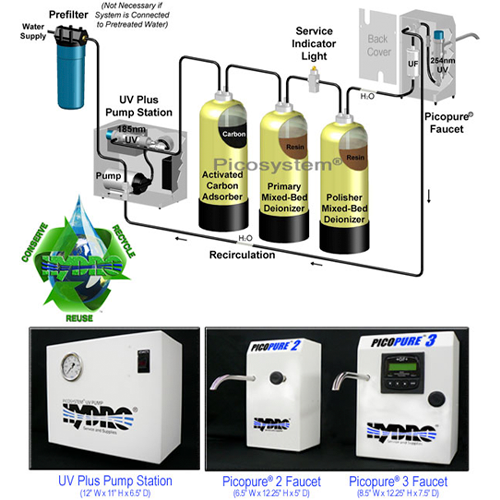

Picopure® UV PLUS

The Picopure® UV Plus combines 254 nm UV (ultraviolet) technology and ultrafiltration in the faucet, 185 nm UV in the system recirculation and the quality performance of the Picosystem® to produce sterile, depyrogenated, low TOC, ASTM and CAP Type I Reagent Grade Water for critical laboratory applications. Ultrapure water is dispensed from the electropolished stainless steel spout connected directly to the UV chamber. The chassis for all Hydro point-of-use (POU) systems is the Picosystem®, which contains a highly activated carbon media for chlorine/chloramine removal and TOC reduction, and quality pharma-grade mixed-bed resins for deionization. “Plus” means the system is recirculated. Recirculation and the 185 nm UV lowers TOC’s to <5 ppb and allows a choice between the Picopure® 2 faucet or the optional Picopure® 3 faucet with resistivity monitor.

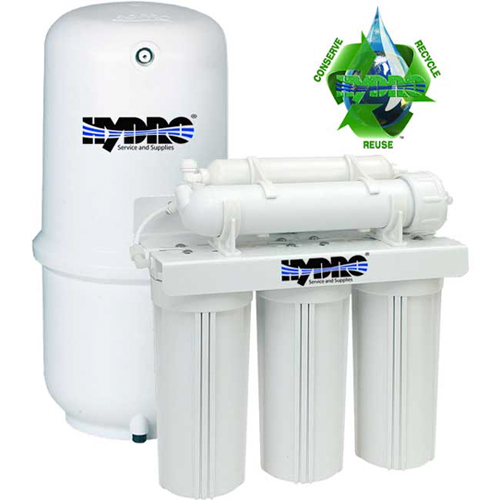

Grant Manager RO

The Grant Manager Reverse Osmosis System is designed to provide inexpensive pretreatment for point-of-use laboratory water systems that have poor feedwater or high daily usage. The Grant Manager is small enough to fit under most laboratory sinks and operates on normal tap water pressure, eliminating pumps and electricity. As pretreatment for your POU system, the Grant Manager reduces operating and service costs up to 80%. Under normal feedwater conditions, the TFC membrane typically removes 88-95% of dissolved inorganics, 99% of organics > 200 molecular weight, and particulates down to 0.001 microns, thus increasing the capacity of the POU system. The Grant Manger is compact, easy to install, and an economical investment that often pays for itself within a short period of time.

Analyzer Water System

The Analyzer Water System (AWS) was originally developed to complement clinical diagnostic equipment that required a minimal feed of CAP Type I water. These units are portable and completely self-contained in a powder-coated cabinet that includes pretreatment filters, RO, storage tank, pharma-grade mixed-bed deionizers, recirculation pump, ultraviolet sterilizer and 0.2 micron post filter (optional). With three models available (AWS 100, 200 and 300), hourly production rates range from 10 to 100 LPH and the water produced meets or exceeds CAP and ASTM Type I quality. The AWS 100 can also be used as a bench top system. These units are visible in hospitals and clinics across the country, but serve many other applications as well. The AWS systems are Hydro OEM products made in the USA.

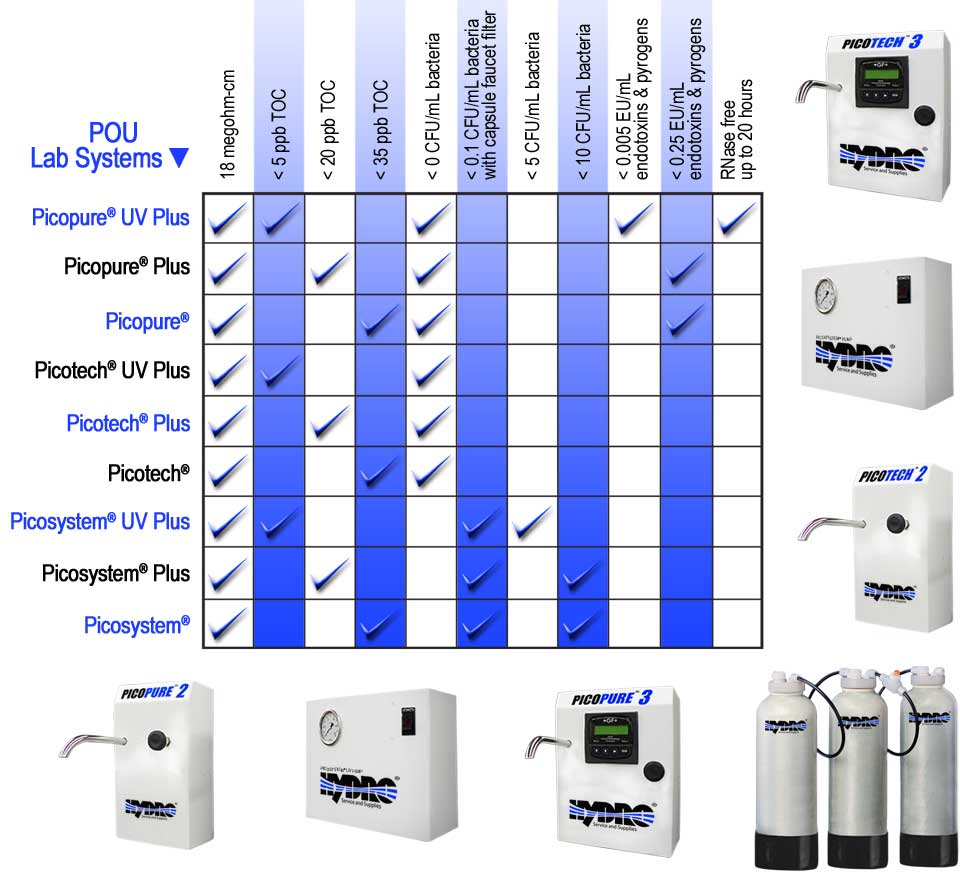

POU Performance Chart
